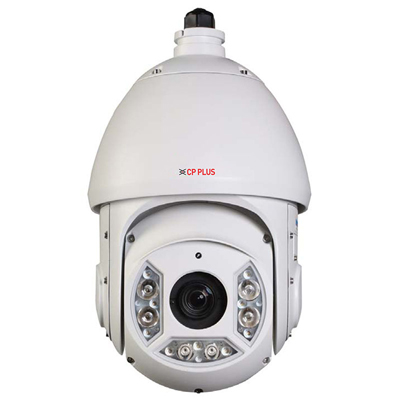

CP-UNP-3021L15DA 2MP 30x WDR

CP Plus
Add to wishlist
Compare
  • 1/2.8″ CMOS Image sensor
  • Max. 50/60fps@1080P, 25/30/50/60fps@720P
  • Powerful 30x Optical and 16x Digital zoom
  • H.265 Encoding
  • WDR(120dB), 3D DNR, Day/Night(ICR), BLC, HLC
  • Up to 300 presets, 8 auto scan, 8 tour, 5 pattern, 8 auto pan
  • IR Range of 150 Mtr.
  • Max 240° /s pan speed, 360° endless pan rotation
  • Built-in 2/1 alarm in/out, IP66
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1/2.8″ CMOS
  • Effective Pixels1920(H) x 1080(V), 2 Megapixels
  • Video Output1 Channel
  • S/N RatioMore than 55dB
  • Minimum IlluminationColor: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
  • Focal Length4.5mm~135mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 67.8° ~ 2.4°
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / WDR(120dB)
  • Optical Zoom30x
  • Digital Zoom16x
  • Pan Travel0°~360° endless, Pan Speed: 0.1° ~ 160°/sec
  • Tilt Travel-15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~120°/sec
  • Manual SpeedPan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
  • Presets300
  • Preset SpeedPan: 240° /s; Tilt: 200° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.265/H.264 / MJPEG
  • Video StreamingMain stream: 1080P/720P(1 ~ 50/60fps), 1.3M(1 ~ 25/30fps), Sub stream1: D1/CIF(1 ~ 25/30fps) , Sub stream2: 1080P/1.3M/720P/D1/CIF (1 ~ 25/30fps)
  • Audio ComprerssionG.711a/G.711Mu/AAC/G.722 / G.726/G.729
  • Auto Trackingsupports
  • Audio Streaming1/1 channel In/Out
  • IVSTripwire, Intrusion,Abandoned/Missing, Face Detection
  • NetworkingRJ-45 (10/100Base-T) , 1 RS485
  • ProtocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x, ONVIF, PSIA, CGI
  • Alarm2/1 channel In/Out
  • Smart PhoneiPhone, iPad, Android Phone
  • Operating Temperature-40ºC ~ 60ºC / Less than 90% RH
  • Weatherproof StandardIP66
  • DimensionΦ204.7(mm) x 359.9(mm)
  • Weight7.8kg
  • Power SourceAC24V/3A(±10%)
  • Power Consumption10.5W,26W (IR on)
  • MemoryUpto 128GB
  • Optical Zoom30x
