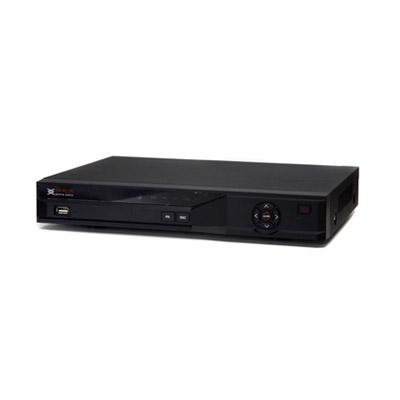

CP-UNR-404T1 4 Ch. Network Video Recorder

CP Plus

  • 4 Ch. with 1080p Realtime Live View
  • H.264/MJPEG dual codec decoding
  • Up to 5Mp resolution preview&playback
  • Max 80Mbps incoming bandwidth
  • Support 1 SATA HDDs up to 4TB, 2 USB2.0
  • HDMI / VGA simultaneous video output
  • Support Multi-brand network cameras
  • ONVIF Version 2.3 conformance
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS, KVMS Pro

  • ProcessorDual-core embedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input4 channel
  • Two-way Talk1 channel Input, 1 channel Output, RCA
  • User InterfaceGUI
  • Video Output1 HDMI, 1 VGA
  • CompressionH.264 / MJPEG
  • Video Resolution2560×1920, 2048×1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
  • Video RecordingMax 80 Mbps
  • Video Display Split42739
  • Motion DetectionMD Zones: 396(22×18).
  • Video Losssupports
  • Camera Blanksupports
  • Hard Disk1 SATA ports, up to 4TB
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen
  • Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
  • Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
  • Backup ModeUSB Device / Internal SATA burner/ Network
  • Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RJ45
  • Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • Ethernet1 RJ-45 port (10/100M/1000M)
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPOE, DDNS, FTP, Alarm Server,ONVIF Version 2.3
  • Power SupplyDC12V/2A
  • Power Consumption10W(without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension325mm × 240mm × 45mm
  • Weight1.25 Kg (without HDD)
