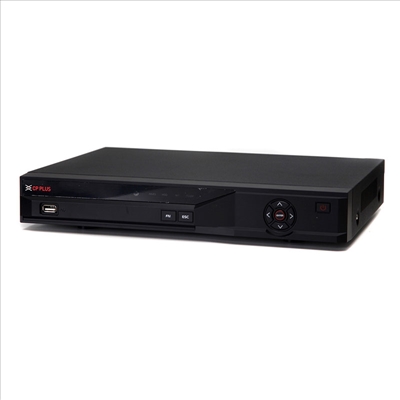

CP-UVR-1601K1 16 Ch. 720P-Advanced HDCVI DVR
- Support HDCVI/Analog/IP Video input
- All channel 720P Realtime or 1080P non-Realtime Recording
- H.264 dual-stream Video Compression
- HDMI / VGA Simultaneous Video Output
- Support 1 SATA HDD up to 4TB, 2 USB2.0
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software:KVMS, KVMS Pro
- ProcessorEmbedded processor
- Operating SystemEmbedded LINUX
- Two-way TalkReuse audio input/output channel 1
- User InterfaceGUI
- Video Input16 channel, BNC
- Video Output1 HDMI, 1 VGA
- Video StandardAnalog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s), HDCVI: 1080P/720P HDCVI Camera, IP: 1080P/720P/D1/CIF IP Camera
- Video Resolution1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768, 800×600
- Video RecordingMain Stream: 1080P(1~12/15fps) / 720P/960H / D1(1~25/30fps), Extra Stream: CIF / QCIF(1~25/30fps), D1(1~6/7fps)
- Video Display Split1/4/8/9/16
- Audio Input1 channel, RCA
- Audio Output1 channel, RCA
- Motion Detectionsupports
- Video Losssupports
- Hard Disk1 SATA port, up to 4TB
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
- Recording ModeManual, Schedule(Regular(Continuous), MD), Stop
- Search ModeTime/Date, MD & Exact search (accurate to second)
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Backup ModeUSB Device/Internal SATA burner/Network
- Interface Ports1 HDMI, 1 VGA, 2 USB2.0
- Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Max User Account128 users
- EthernetRJ-45 port (10/100M/1000M)
- ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P, ONVIF Version 2.4 conformance
- Power SupplyDC12V/3A
- Power Consumption10W(without HDD)
- Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
- Dimension325mm × 255mm × 55mm
- Weight1.5KG(without HDD)
