- Image Sensor1/2.8″ 2MP CMOS
- Video Output1 BNC, impedance 75 O; amplitude 1 V [p-p]
- S/N Ratio>52dB
- Minimum IlluminationColour: 0.002 lux (F1.2, AGC ON) 0 lux with IR
- Focal Length5mm ~ 220 mm
- White BalanceAuto / Manual
- Focus ControlAuto / Manual
- Iris ControlAuto/Manual; F1.2 ~ F3.5
- Angle of View60.6° (wide) ~ 1.8° (tele)
- Electronic ShutterAuto/Manual; shutter time: 1/6 s ~ 1/100000 s
- AGC ControlAuto / Manual
- Back Light CompensationBLC / HLC / WDR(120dB)
- Optical Zoom44x
- Digital Zoomsupports
- Pan Travel360° endless, Pan Speed: 0.1°/s ~ 240°/s
- Tilt Travel15° ~ +90° (auto reverse), Tilt Speed: 0.1° ~160°/sec
- Presets256
- Preset SpeedPan: 300° /s; Tilt: 240° /s
- Day/Night: IR Cut FilterIR-cut filter with auto switch (ICR)
- Video CompressionH.265, H.264, MJPEG
- Video StreamingMax.60 fps@1080P (1920×1080) , Max.15 fps@1080P (1920×1080) , Max.8 fps@D1 (720×576) , Max.60 fps@1080P (1920×1080) , Max.30 fps@720P (1280×720) , Max.15 fps@D1 (720×576)
- Audio ComprerssionG.711a
- Audio StreamingTwo way Talk Supported
- IVSIntrusion, crossing line, motion detection, Auto tracking, Audio detection, Face detection, People counting
- Networking10M/100M Base-TX Ethernet, 1 RS485
- ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x, ONVIF, API
- Alarm2 In/1 Out
- Operating Temperature– 45°C~70°C(- 49°F ~ 158°F), Humidity ≤ 95% RH(non- condensing)
- Weatherproof StandardIP67
- DimensionΦ270mm x 496.7mm(Φ10.6” x 19.6”)
- Weight9.69 kg
- Power Source24 V±25% AC (Default), 24 V±25% DC
- Power Consumption16 ~56W
- MemoryMicro SD, up to 128GB
- Optical Zoom44x
Network, Speed Dome(PTZ)

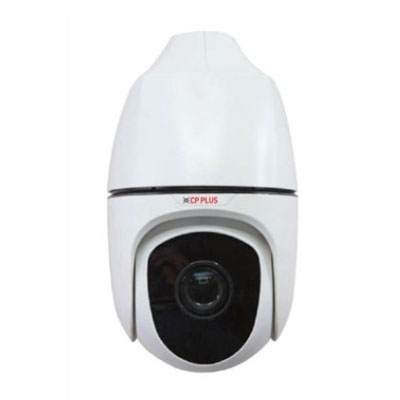

CP-VNP-4421L25-DAS 2MP Full HD WDR Network IR PTZ Camera – 250 Mtr.
- 1/2.8″ 2 MP PS Image Sensor
- Max.60 fps@1080P (1920×1080)
- Powerful 44x Optical Zoom
- WDR(120 dB), Day/Night(ICR), Defog, EIS, AWB, BLC, HLC
- H.265, H.264, MJPEG Triple Stream Supported
- Up to 256 Presets, Preset patrol, route patrol, Recorded patrol
- Max 240°/s pan speed, 360° endless pan rotation
- Built-in 2/1 alarm in/out, IP67
- IR Range of 250 Mtr., Micro SD
- Supports Instastream technology, save diskspace and bandwidth upto 70%
- Mobile Software: Android, iOS
- CMS Software: IVMS
