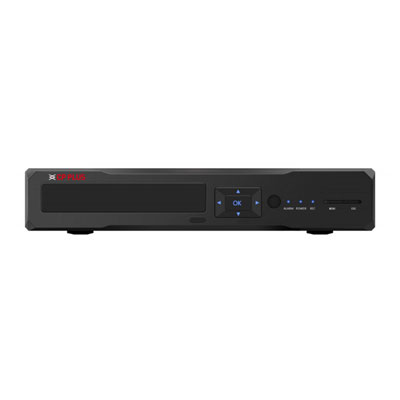

CP-VRA-2E3216 32 Ch. 1080P Lite Indigo DVR

CP Plus

  • H.264 dual-stream video compression
  • All channel 1080P Lite Non-Realtime Recording
  • Support AHD, TVI,CVI, CVBS, IP Video input
  • HDMI / VGA simultaneous video output
  • Support 2 SATA Ports up to 16TB, 3 USB2.0
  • Mobile Software: Android, iOS
  • CMS Software: CMS

  • ProcessorHigh performance embedded microprocessor
  • Operating SystemEmbedded LINUX
  • User InterfaceGUI
  • Video Input32 channel, BNC
  • Video Output1 HDMI, 1 VGA
  • Video StandardAnalog: 32Ch. @1080N, 16Ch. @1080N , 32Ch. @960H / Hybird: 16Ch. @1080N(analog)+ 16Ch. @960P(ip) / IP: 16Ch. @1080P+16Ch. @960P , 8Ch. @3M , 8Ch. @5M
  • CompressionH.264 / G.711a
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
  • Audio Input16 channel
  • Audio Output1 channel
  • Alarm Input16 Channel
  • Alarm Output4 Channel
  • Hard Disk2 SATA port, up to 16TB
  • Smart PhoneiPhone, iPad, Android
  • HDD ManagementHDD Storage, Network Storage
  • Recording ModeManual>Alarm>Motion detection>Timing
  • Search Modesearch by Time/Calendar/Event/Channel
  • Playback16Ch.
  • Backup ModeNetwork, USB, SATA
  • Interface Ports3 USB 2.0, 1 RS485, 1 RS232, 1 RJ45
  • EthernetRJ45 10M/100M Adaptive Ethernet port
  • ProtocolsONVIF Supports
  • Power Supply12V/4A
  • Power Consumption<10W(Without HDD)
  • Working Temp0 °C – + 55 °C, 10% -90% RH
  • Dimension440mm(L) x 290mm(W) x 50mm(H)
  • WeightNo
