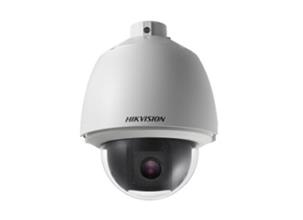

DS-2DE4120W-AE(3)1.3MP 20X Network PTZ Dome Camera

Hikvision
Add to wishlist
Compare
  • 1/3″ Progressive Scan CMOS
  • 1280 x 960@60fps
  • 20X Optical Zoom
  • DWDR
  • 3D intelligent positioning function
  • Support cloud P2P
  • PoE(802.3at, class4) /24VAC power supply

Camera
Image Sensor: | 1/3″ Progressive Scan CMOS
Effective Pixels: | 1280(H)x960(V)
Signal System: | PAL/NTSC
Minimum Illumination: | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
Smart defog: | Support
WDR: | DWDR
Shutter Time: | 1/1-1/10,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 4.7-94mm, 20x
Zoom Speed: | Approx.2.7s(Optical Wide~Tele)
Angle of View: | 58.3-3.2 degree (Wide-Tele)
Minimum Working Distance: | 10~1,500mm(Wide~Tele)
Aperture Range: | F1.6-F3.5
Pan & Tilt
Pan Range: | 360°endless
Pan Speed: | Pan Manual Speed: 0.1° -160°/s,
Pan Preset Speed: 160°/s
Tilt Range: | 5°~90° (Auto Flip )
Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 120°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Patrol: | 8 patrols, up to 32 presets per patrol
Pattern: | 4 pattern scans, record time over 10 minutes for each scan
Power loss recovery: | Support
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: | ON/OFF
Freeze Frame: | Support
Alarm
Alarm Input: | 2
Alarm Output: | 1
Alarm Actions: | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
Input & Output
Audio Input: | 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 1280×960
Frame Rate: | 50Hz: 25fps (1280×720)
60Hz: 30fps (1280×720)
Video Compression: | H.264 / MJPEG
ROI encoding: | Support 2 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users: | Up to 20 users
Dual Stream: | Support
Three-Stream: | Support
Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Security Measures: | User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Hik-Connect: | Support
Client GUI
Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Client: | Support iVMS-4200
Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
Power Supply: | AC 24V and PoE (802.3at, class4)
Power Consumption: | Max. 22W
Working Temperature/Humidity: | -AE: -30°C ~ 65°C (-22°F ~ 149°F) / -AE3: -10°C ~ 50°C (14°F ~ 122°F)
90% or less
Mounting: | Various mounting modes optional
Dimensions: | Φ179.4×239.5mm (Outdoor)
Φ165×179.5mm (Indoor)
Φ165×168mm (In-ceiling)
Weight (approx.): | 2Kg (4.41Ibs)
Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box;
