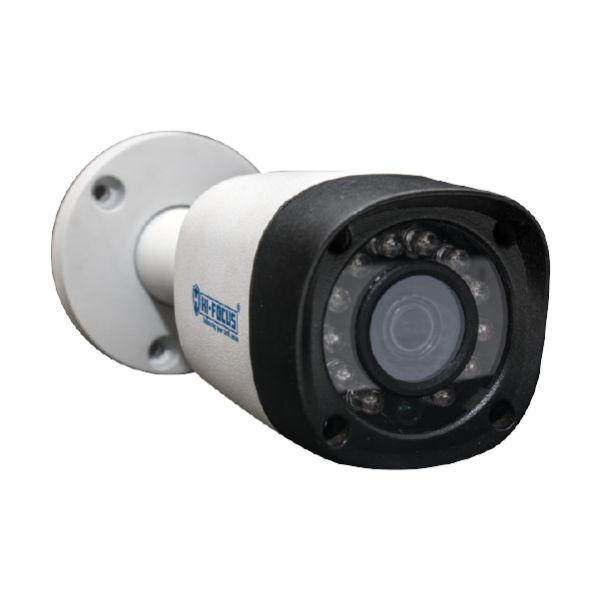

HC-CVI-T1200RM
1/2.8″ 2 MP High Definition Image Sensor
25/30fps@1080P
High Speed, Long Distance & Real Time Transmission
Day/Night (ICR), AWB, AGC, BLC
3.6 mm Fixed Lens
IR Range of 20 Mtrs. with Smart IR
12V DC ± 10%, Metal Housing, IP66
Image Sensor
Resolution
Min-illumination
Lens
Pixels
Electronic Shutter
Synchronization
Video Streaming
Video Output
IR
Power Supply
Power Consumption
Working Environment
Ingress protection
Transmission Distance
Dimensions
Weight
Certifications
1/2.8″ 2 MP High Denfinition Image Sensor
1080p
0.05Lux@F1.2(AGC ON),0Lux IR on
3.6mm
1920(H) x 1080(V)
1/3s~1/100,000s
Internal
1080P@25 fps
1-channel BNC HDCVI high definition video output
IR Range of 20 M, Smart IR
DC12V±10%
Max 6W
-30°C~+60°C / Less than 95%RH (no condensation)
IP66
Over 500m via 75-3 coaxial cable
Φ113.6mm x 85.4mm
250 gms
CE, FCC, RoHs
