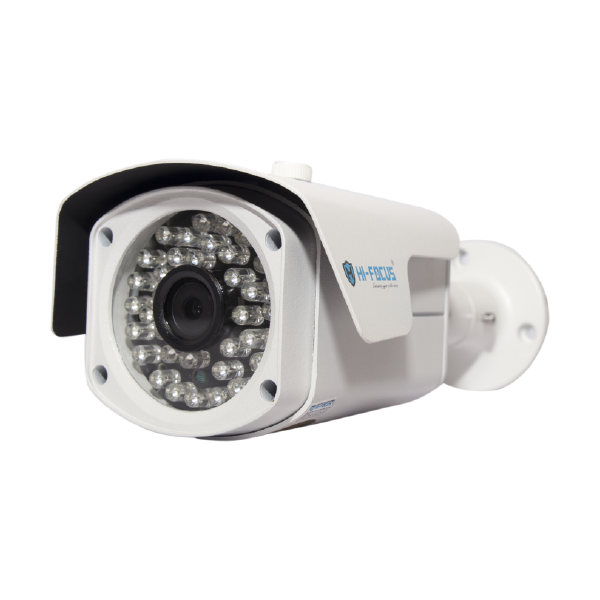

HC-CVI-TS20N2
1/2.8″ 2.4MP Sony Exmor High Resolution Sensor
25/30fps@1080P
High Speed, Long Distance & Real Time Transmission
Day/Night (ICR), AWB, AGC, BLC
3.6mm Fixed Lens
Max. IR Range of 20 Mtrs. with 24 LEDs
12V DC ± 10%, Metal Housing, IP66
Image Sensor
Resolution
Min. Illumination
Lens
Pixels
Electronic Shutter
Synchronization
Video Streaming
Video output
IR
Power Supply
Power Consumption
Working Environment
Ingress protection
Transmission Distance
Dimensions
Weight
Certifications
1/2.8″ 2.4Mp Sony Exmor High Resolution Sensor
1080P
0.01Lux@F1.2
3.6 mm
1920(H) x 1080(V)
1/50(1/60)-1/100,000sec
Internal
1080P@25 fps
1-channel BNC HDCVI high denition video output
IR Range of 20 Mtrs. with 24 LEDs
DC12V±10%
Max 2.5W
-30°C~+60°C / Less than 95%RH (no condensation)
IP66
Over 500m via 75-3 coaxial cable
Φ85mm × 69mm
150 gms
CE, FCC, RoHs
