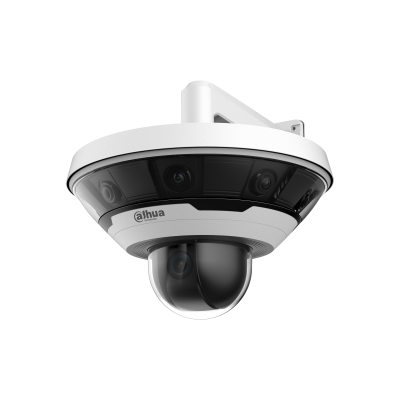

PSD8802-A180 4x2MP Multi-Sensor Panoramic Network Camera+PTZ Camera

Dahua

> Panoramic: Four 1/1.9” 2Megapixel progressive scan CMOS
> PTZ: One 1/1.9” 2Megapixel progressive scan CMOS
> H.265/H.264 triple-stream encoding
> 25fps@4096×1800+50/60fps@1080P
> Support 180-degree panoramic view
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Smart tracking
> Intelligent Function
> Micro SD memory, IP67, IK10

Image Sensor Four 1/1.9” 2Megapixel CMOS
Effective Pixels 4096(H)x1800(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.005Lux/F2.2( Color,1/3s,30IRE)

0.03Lux/F2.2( Color,1/30s,30IRE)

0.003Lux/F2.2( B/W,1/3s,30IRE)

0.02Lux/F2.2( B/W,1/30s,30IRE)

S/N Ratio More than 50dB
Panoramic Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 5mm
Max. Aperture F2.2
Angle of View H: 180˚, V:80˚
DORI Distance Detect Observe Recognize Identify
53m(178ft) 21m(69ft) 10m(33ft) 5m(17ft)
PTZ Camera
Image Sensor 1/1.9” 2Megapixel CMOS
Effective Pixels 1920(H)x1080(V)
RAM/ROM 1024MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1~1/30000s
Minimum Illumination 0.002Lux/F1.5( Color,1/3s,30IRE)

0.01Lux/F1.5( Color,1/30s,30IRE)

0.001Lux/F1.5( B/W,1/3s,30IRE)

0.008Lux/F1.5( B/W,1/30s,30IRE)

S/N Ratio More than 50dB
PTZ Lens
Lens Type Motorized /Auto Iris(HALL)
Mount Type Board-in
Focal Length 5.5mm~206mm
Max. Aperture F1.5
Angle of View H: 65.8˚~2.0˚
Optical Zoom 37x
Focus Control Motorized
DORI Distance Lens Detect Observe Recognize Identify
W 70m(229ft) 28m(92ft) 14m(46ft) 7m(23ft)
T 2080m

(6824ft)

832m

(2730ft)

416m

(1365ft)

208m

(682ft)

PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
Intelligence
Auto Tracking Support
IVS Tripwire, Intrusion
Video
Compression H.265/H.264
Streaming Capability 3 Streams
Resolution Panoramic Camera 4096×1800/3840×1680/2880×1264/

/1920×832/1280×560/1024X452

PTZ Camera 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate Panoramic Camera Main Stream: 4096×1800(1~25fps)
Sub Stream: 1024X452 (1 ~ 25/30fps)
Third Stream: 1920×832 (1 ~ 25/30fps)
PTZ Camera Main Stream: 1080P(1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~50/60fps)
Bit Rate Control CBR/VBR
Bit Rate Panoramic Camera H.265: 14Kbps~ 8192Kbps

H.264: 24Kbps~ 8192Kbps

PTZ Camera H.265: 4Kbps~ 8192Kbps

H.264: 8Kbps~ 7168Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR N/A
Defog Support(For PTZ Camera only)
Digital Zoom 16x
Flip N/A
Mirror N/A
Privacy Masking Panoramic Camera Off / On (4 Area, Rectangle)
PTZ Camera Off / On (24 Area, Rectangle)
Audio
Compression G.711a/G.711Mu/AAC/ G.726
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface 1 Port(For PTZ Camera only)
Audio Interface 2/1 channel In/Out
RS485 1 Port
Alarm 7 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical
Power Supply DC36V
Power Consumption <120W
Environmental
Operating Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Strorage Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions Φ449.5mm×342.5mm(Φ17.7”×13.48”)
Net Weight 16kg(35.27lb)
Gross Weight 25kg(55lb)
