- ProcessorHigh performance embedded microprocessor
- Operating SystemEmbedded LINUX
- User InterfaceGUI
- Video Input8 channel, BNC
- Video Output1 HDMI, 1 VGA
- Video StandardAnalog: 8Ch. @1080P / 8Ch. @1080N / Hybird: 4Ch. @1080P(analog) +4Ch. @1080P(ip) / IP: 4Ch.@5M , 4Ch.@3M , 8Ch.@1080P+8Ch.@960P , 16Ch.@960P
- CompressionH.264 / G.711a
- Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
- Audio Input8 channel
- Audio Output1 channel
- Alarm Input4 Channel
- Alarm Output1 Channel
- Hard Disk2 SATA port, up to 16TB
- Smart PhoneiPhone, iPad, Android
- HDD ManagementHDD Storage, Network Storage
- Recording ModeManual>Alarm>Motion detection>Timing
- Search Modesearch by Time/Calendar/Event/Channel
- Playback4Ch. @1080P(12fps) / 8Ch. @ 1080N (25fps)
- Backup ModeNetwork, USB, SATA
- Interface Ports3 USB 2.0, 1 RS485, 1 RJ45
- EthernetRJ45 10M/100M Adaptive Ethernet port
- ProtocolsHTTP, TCP/IP, UDP, IPV4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI
- Power Supply12V/4A
- Power Consumption<10W(Without HDD)
- Working Temp0 °C – + 55 °C, 10% -90% RH
- Dimension350mm(L) x 296mm(W) x 44mm(H)
- Weight1.8KG
8 Ch., Digital Video Recorder (DVR)

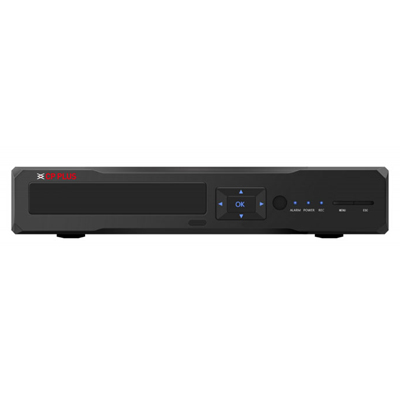

CP-ER-0808K2-T 8 Ch. 1080P Astra DVR
- H.264 dual-stream video compression
- All channel 1080P Non-Realtime Recording
- Support AHD, TVI,CVI, CVBS, IP Video input
- HDMI / VGA simultaneous video output
- Support 2 SATA HDD up to 16TB, 3 USB2.0
- Mobile Software: RMOB
- CMS Software: RVMS
