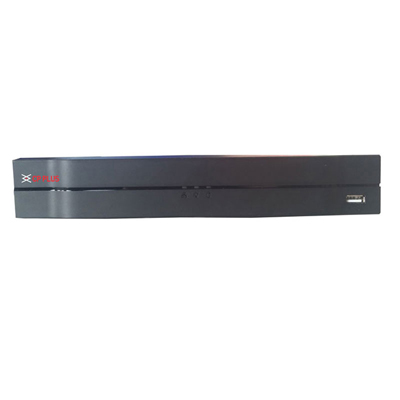

CP-UNR-204T1-V2 4 Ch. Network Video Recorder

CP Plus

  • Up to 4ch@1080P Real-time Live-view & Playback
  • H.264+ /H.264/MJPEG dual codec decoding
  • Up to 6Mp resolution preview & playback
  • Max 80Mbps incoming bandwidth
  • Support 1 SATA HDDs up to 6TB, 2 USB2.0
  • HDMI / VGA simultaneous video output
  • Support Multi-brand network cameras
  • ONVIF Version 2.4 conformance
  • Mobile Software: iCMOB, gCMOB

  • ProcessorDual-core embedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input4 channel
  • Two-way Talk1 channel Input, 1 channel Output, RCA
  • User InterfaceGUI
  • Video Output1 HDMI, 1 VGA
  • Compressionsmart H.264+/H.264/MJPEG
  • Video Resolution2560 × 1920, 2048 × 1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
  • Motion DetectionMD Zones: 396(22×18).
  • Video Losssupports
  • Camera Blanksupports
  • Hard Disk1 SATA III Ports, up to 6TB
  • Smart PhoneiPhone, iPad, Android Phone
  • Trigger EventsRecording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
  • Recording ModeManual, Schedule(Regular(Continuous), MD), Stop
  • Search ModeTime /Date, MD and Exact Search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
  • Backup ModeUSB Device /Network
  • Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RJ45
  • Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • Ethernet1 RJ-45 port (10/100Mbps)
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search, ONVIF Version 2.4
  • Power SupplyDC12V/2A
  • Power Consumption<4W (without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension260mm x 224.9mm x 47.6mm
  • Weight0.8Kg (without HDD)
