8 Ch., Network Video Recorder (NVR)

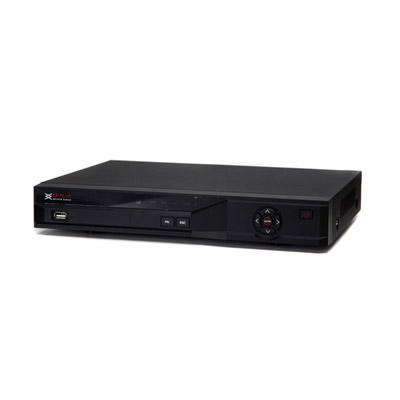

CP-UNR-408T1-P8 8 Ch. Network Video Recorder
- 8 Ch. with 1080p Realtime Live View
- H.264/MJPEG dual codec decoding
- Up to 5Mp resolution preview&playback
- Max 80Mbps incoming bandwidth
- Support 1 SATA HDDs up to 4TB, 2 USB2.0
- HDMI / VGA simultaneous video output
- Support Multi-brand network cameras
- ONVIF Version 2.3 conformance, 8 Ports PoE
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software: KVMS, KVMS Pro
- ProcessorDual-core embedded processor
- Operating SystemEmbedded LINUX
- IP Camera Input8 channel
- Two-way Talk1 channel Input, 1 channel Output, RCA
- User InterfaceGUI
- Video Output1 HDMI, 1 VGA
- CompressionH.264 / MJPEG
- Video Resolution2560×1920, 2048×1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
- Video RecordingMax 80 Mbps
- Video Display Split1/4/8/9
- Motion DetectionMD Zones: 396(22×18).
- Video Losssupports
- Camera Blanksupports
- Hard Disk1 SATA ports, up to 8TB
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen
- Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
- Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
- Backup ModeUSB Device / Internal SATA burner/ Network
- Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RJ45
- Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Max User Account128 users
- Ethernet1 RJ-45 port (10/100M/1000M)
- ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPOE, DDNS, FTP, Alarm Server,ONVIF Version 2.3
- Power Supplysingle, DC48V/1.5A
- Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
- Dimension325mm × 240mm × 45mm
- Weight1.25 Kg (without HDD)
