- ProcessorHigh performance embedded microprocessor
- Operating SystemEmbedded LINUX
- User InterfaceGUI
- Video Input8 channel, BNC
- Video Output1 HDMI, 1 VGA
- Video StandardAnalog: 8Ch. @1080P / Hybird: 8Ch. @1080P (analog)+8Ch. @1080P (ip) / IP: 4Ch. @5M , 4Ch. @3M , 8Ch. @1080P+8Ch. @960P , 16Ch. @960P
- Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
- Audio Input8 channel
- Audio Output1 channel
- Alarm Input16 Channel
- Alarm Output4 Channel
- Hard Disk4 SATA port, up to 32TB
- Smart PhoneiPhone, iPad, Android
- HDD ManagementHDD Storage, Network Storage
- Recording ModeManual>Alarm>Motion detection>Timing
- Search Modesearch by Time/Calendar/Event/Channel
- Playback8 Ch.
- Backup ModeNetwork, USB, SATA
- Interface Ports3 USB 2.0, 1 RS485, 1 RJ45
- EthernetRJ45 10M/100M Adaptive Ethernet port
- ProtocolsONVIF Supports
- Power Supply12V/6A
- Power Consumption<10W(Without HDD)
- Working Temp0 °C – + 55 °C, 10% -90% RH
- Dimension440mm(L) x 400.5mm(W) x 60mm(H)
- Weight4KG
8 Ch., Digital Video Recorder (DVR)

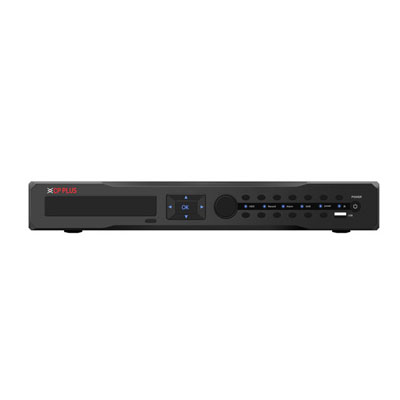

CP-VRA-4F0808 8 Ch. 1080P Indigo DVR
- H.264 dual-stream video compression
- All channel 1080P Realtime Recording
- Support AHD, TVI,CVI, CVBS, IP Video input
- HDMI / VGA simultaneous video output
- Support 4 SATA HDD up to 32TB, 3 USB2.0
- Mobile Software: Android, iOS
- CMS Software: CMS
