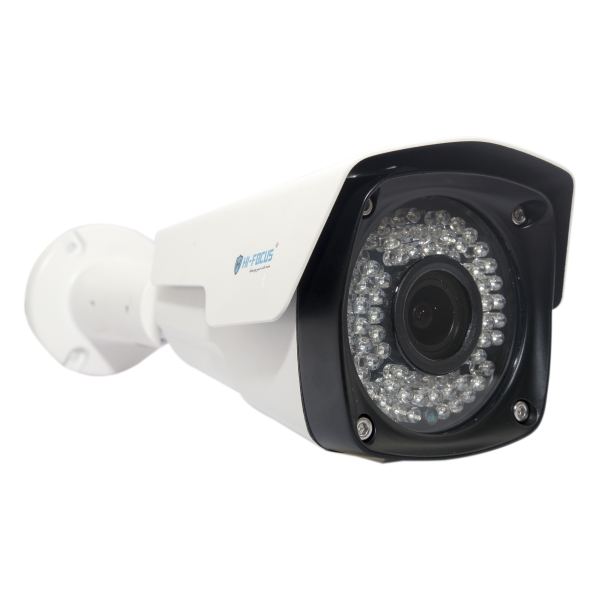

HC-CVI-TS20MVBN6
1/2.8″ 2.4Mp Sony Exmor High Resolution Sensor
25/30fps@960P
High Speed, Long Distance & Real Time Transmission
Day/Night (ICR), AWB, AGC, BLC
2.8 ~ 12 mm Auto Iris Lens
IR Range of 60 Mtrs. with 72 LEDs
12V DC ± 10%
Image Sensor
Resolution
Min. Illumination
Lens
Pixels
Electronic Shutter
Synchronization
Video Streaming
Video output
IR
Power Supply
Power Consumption
Working Environment
Ingress protection
Transmission Distance
Dimensions
Weight
Certifications
1/2.8″ 2.4Mp Sony Exmor High Resolution Sensor
1080P
0.01Lux@F1.2
2.8 ~ 12 mm
1920(H) x 1080(V)
1/50(1/60)-1/100,000sec
Internal
1080P@25 fps
1-channel BNC HDCVI high denition video output
IR Range of 60 Mtrs. with 72 LEDs
DC12V±10%
Max 2.5W
-30°C~+60°C / Less than 95%RH (no condensation)
IP66
Over 500m via 75-3 coaxial cable
Φ85mm × 69mm
400 gms
CE, FCC, RoHs
