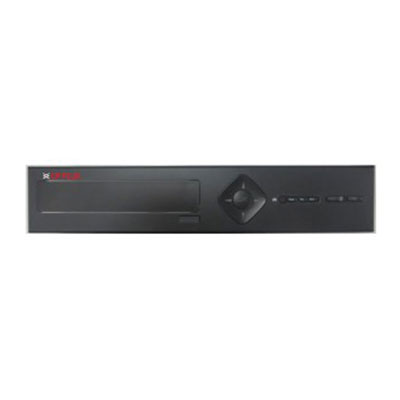

CP-ER-0404D2-5M 4 Ch. 5MP Astra DVR
- H.264+ /H.264 dual-stream video compression
- All channel 5MP Non-Realtime Recording
- Support AHD, TVI,CVI, CVBS, IP Video input
- HDMI / VGA simultaneous video output
- Support 2 SATA Port up to 16TB, 2 USB Ports(2.0)
- Mobile Software: cMOB-20
- CMS Software: RVMS Pro
- ProcessorHigh performance embedded microprocessor
- Operating SystemEmbedded LINUX
- User InterfaceGUI
- Video Input4 channel, BNC
- Video Output1 HDMI, 1 VGA
- Video StandardAnalog: 4Ch. 5MP@11fps(AHD) , 4Ch. 4MP@15fps(AHD) , 4Ch. 3MP@18fps(AHD) , 4Ch. 1080P@25fps(5 in 1) / Hybrid: 2Ch. @5MP(analog) + 2Ch. @5MP(ip) / IP: 8Ch. @1080P+ 8Ch. @960P, 4Ch. @5MP , 4Ch. @3MP
- CompressionH.264+/ H.264 / G.711a
- Video Resolution5MP, 4MP, 3MP, 2MP, 1MP
- Video Recording4Ch. 5MP@11fps(AHD) , 4Ch. 4MP@15fps(AHD) , 4Ch. 3MP@18fps(AHD) , 4Ch. 1080P@25fps(5 in 1)
- Video Display Split1/4
- Audio Input4 channel
- Audio Output1 channel
- Alarm Input4 channel
- Alarm Output1 channel
- Hard Disk2 SATA port, up to 16TB
- Smart PhoneiPhone, iPad, Android
- HDD ManagementHDD Storage, Network Storage
- Recording ModeManual>Alarm>Motion detection>Timing
- Search ModeSearch by Time/Calendar/Event/Channel
- Playback4Ch.
- Backup ModeNetwork, USB, SATA
- Interface Ports2 USB Ports(2.0), 1 RS485, 1 RJ45
- Wi-FiSupport 3G
- EthernetRJ45 10/100Mbps Adaptive Ethernet port
- ProtocolsHTTP, TCP/IP, UDP, IPV4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI
- Power Supply12V/4A
- Power Consumption<10W (Without HDD)
- Working Temp0 °C – + 55 °C, 10% -90% RH
- Dimension310mm(L) x 298mm(W) x 60mm(H)
- Weight1.8 KG
